Displacement unit for floor assembly

Fits raised floor systems with plates 600x600
Available with plenum boxes
• Made in special sizes
• Easy to install

EBO series terminals are installed in the floor to provide a displacement ventilation system.
The terminals are recessed in a pressurized floor or duct connected by means of a plenum box in the floor .


EBO has a rigid front which can stand a point load of 160 kg. The front consists of perforated sheet steel welded to a frame work. The height of the frame is adapted to fit the floor system. Common values are 30-40mm. In order to provide an even air distribution a plate with nozzles is installed behind the reinforced front. The front and air distribution plate is laying lose in the floor. EWB 06-06 is a standard unit which replaces a floor plate 600x600 in raised floor systems. If preferable a plenum box can be supplied and installed in the raised floor to provide a duct connected system.
EWB is also made in sizes according to costumers’ specification.


Front 3mm sheet steel
Distribution plate and plenum boxes made from galvanized sheet steel. The front and frame is powder painted in RAL9011

For further technical information Download EBOpdf

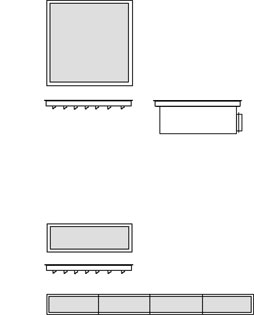

EBO 0606 replaces a floor plate in raised floor systems. The EBO is ordered and manufactured with a height to fit to floor plates at site
An air duct can also be made in the floor with single EBOs or a row of terminals.
