Bow shaped displacement unit
  • Special dimensions
  • Compact design
  • High finish
  • Suitable for all types of rooms
AWB is a bow shaped displacement unit for wall mounting, which provides supply air at low velocity. The terminals are suitable for comfort installations. AWB is installed with base, decorative top or duct cover as accessory. Width, depth and connections are standardized while the height is made according to costumer’s requirement.

Design
The unit consists of a back plate with top, bottom and air distribution plate with nozzles. It is available with top/bottom connection or rear connection if a duct cover is used. The connection in the top or rear is round. In a version for bottom connection AWB is made with rectangular connection. The back plate with its components is fixed to corner profiles. The perforated front is mounted to the corner profiles with a few screws. If AWB is ordered without duct cover it is delivered with a top lid in painted sheet steel. As accessory it can be supplied with a decorative top in painted MDF or in various wood material

Material
Front plate made in 1.25 mm hot dipped galvanized sheet steel. Visible parts powder coated in RAL 9010. Other colours according to RAL or NCS are available on request.For further echnical information download AWBpdf

BEMAIR AB
AWB

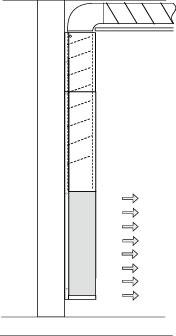

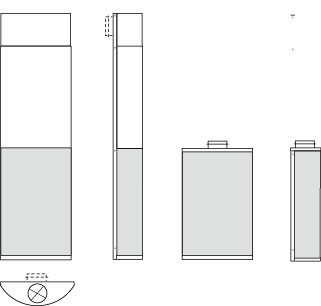

Round top connection and duct cover
Round bottom connection and base.
