AK units are used in industrial and comfort installations to provide displacement ventilation. The units are mounted against a wall or freestanding on the floor of large rooms. They are designed to supply very large air flows at low velocities in the occupied zone
Design
The AK units have a pop riveted casing of a solid construction . A rigid perforated and profiled front is recessed in the casing. Internal distribution plates with nozzles provides an even air distribution over the front. As standard front and nozzle plate is removable by means of screws.
Width, depth and connection is standardized while the height is made according to costumer’s requirement.

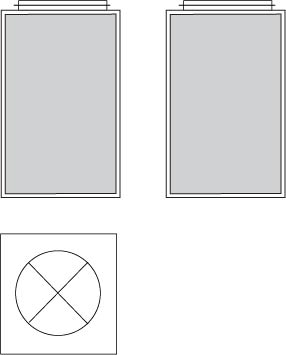

Versions AKC 2-way air supply
AKD 3-way air supply
AKE 4-way air supply
Material
Front is made in 1.25mm galvanized sheet steel. Visible parts powder painted as standard in RAL9010
Other colours according to RAL or NCS are available on request. For further echnical information downloadAKpdf
